audio-maniacs transistor - amp-labs

mike amp:  info
one mike input, two electronically balanced outputs XLR (transformers in separate housing on request - extra charge)
gain: 6 to 66 dB, frequency range: 5 Hz - 200 kHz at 66 dB gain +/- 0 dB; harmonic distortion: -110 dB = distortion of the generator, measured with Rohde & Schwartz UPD, Tektronics AA5001, HP 3582A; noise -121 dB RMS measured in compliance with DIN 468 with noise meter Siemens U2233; maximum output limit +32 dB at 1 kOhm ref. to 0 DBm

ultra high precision line amp:  info
one unbalanced input for jack, one decoupled output for instrument, two electronically balanced outputs, gain adjustable separately, (transformers on request - extra charge)
gain input instrument to output instrument 0 dB, gain input instrument to balanced output 12 dB
maximum gain (each output can be adjusted separately) 60 dB

headphone amplifier:  info
frequency range: 10 Hz - 1,4 MHz +/- 0,08 %
harmonic distortion: K2, K3 <0,03 %
noise: -114 dB
output: 80 mW at 50 Ohm

transformer for up to 6 devices:  info
supplies the necessary voltages for up to 6 preamps

headphone amplifier stand alone:
tecnical data: frequency range: 10 Hz - 1,4 MHz +/- 0,08 %
harmonic distortion: K2, K3 <0,03 %, noise: -114 dB
output:  80 mW at 50 Ohm
with transformer

combination:  info
head, line, mike, netz

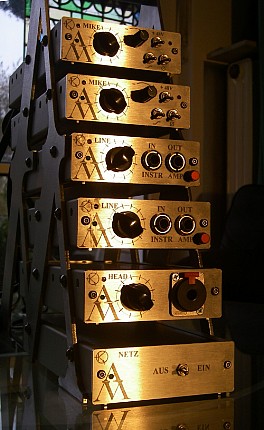

combination:
2 x mikeamps, 2 x lineamps, 1 x headphoneamp, 1 transformer
in carrier

carrier:
for up to 6 devices
massive brushed stainless steel
